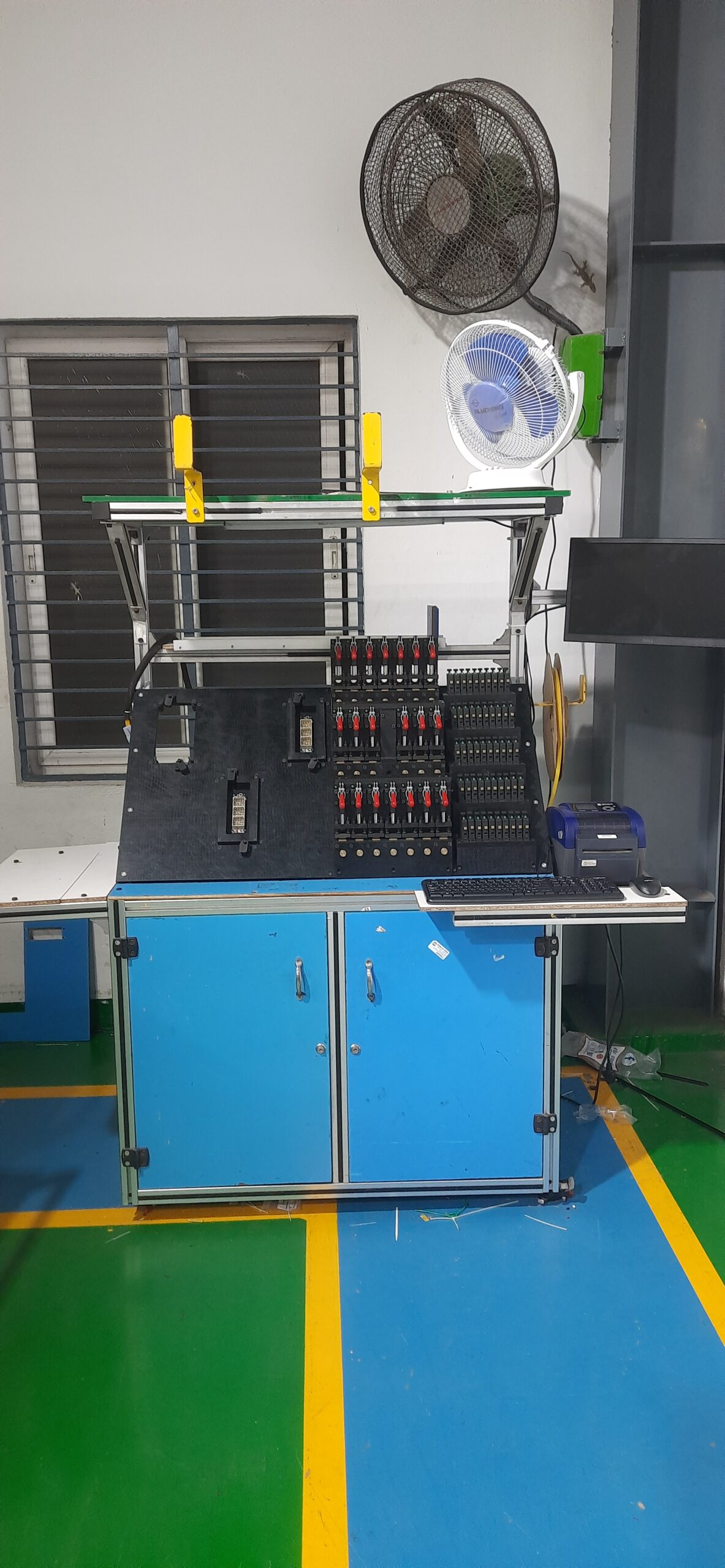

Wiring Harness Tester

“Reliable Voltage Conversion, Unmatched Performance – Power Your Control Systems with Yashika Industries!”

Product Overview

A Wiring Harness Tester is a specialized device used to inspect and verify the electrical integrity of wiring harnesses. It ensures that wiring connections are accurate, free from defects, and meet safety standards. The tester is widely utilized in industries such as automotive, aerospace, industrial automation, telecommunications, and medical equipment. It performs critical functions such as continuity testing, short circuit detection, insulation resistance measurement, and voltage verification to ensure the harness is correctly wired and functional.

Key Features

  • Continuity & Shorts – Detects wiring paths and shorts (<1Ω).
  • High Voltage Testing – Up to 1500V DC/AC for insulation checks.
  • Auto Pin Mapping – Identifies miswiring and missing wires.
  • Custom Test Programs – Adjustable voltage, resistance, and limits.
  • Multi-Connector Support – Works with various industrial connectors.
  • User-Friendly UI – Touchscreen/PC with real-time pass/fail.
Add an overline

Technical specification

  • Voltage Range: 0–1500V (AC/DC)
  • Current Range: Up to 10A
  • Number of Test Points: 64–2048 (Expandable)
  • Continuity Test Resistance: 0.1Ω–100kΩ
  • Insulation Resistance Test: 10MΩ–500MΩ
  • Short Circuit Sensitivity: 1Ω–10kΩ
  • Testing Speed: 1000–5000 points per second
  • Connector Types: Compatible with automotive, aviation, industrial, and custom connectors

Application

“Efficient Power Control for Reliable Industrial Automation!”

Wiring harness testers are critical in automotive manufacturing for verifying the integrity of harnesses used in engine control units, lighting systems, infotainment, and safety features like airbags and ABS. Early detection of shorts, open circuits, or miswiring prevents costly recalls and ensures vehicle safety and performance.

In aircraft and defense equipment, wiring harnesses must meet rigorous standards for reliability and safety. Testers are used to validate avionics wiring, communication systems, and power distribution harnesses. The tester ensures no loose connections or insulation breakdowns under high-voltage conditions, which is crucial in mission-critical environments.

Used in automated systems, control panels, and robotics, wiring harness testers verify that each wire is properly connected to relays, PLCs, and sensors. Faulty wiring can halt industrial processes, so the tester helps maintain operational reliability and reduce downtime.

In the mass production of TVs, computers, gaming consoles, and household appliances, wiring harness testers are used to inspect compact, intricate harnesses. They ensure consistency, functional reliability, and prevent electrical failures that could affect consumer safety.
