Weld Vaccum Tester

“Reliable Voltage Conversion, Unmatched Performance – Power Your Control Systems with Dedicated Product And Solution!”

Product Overview

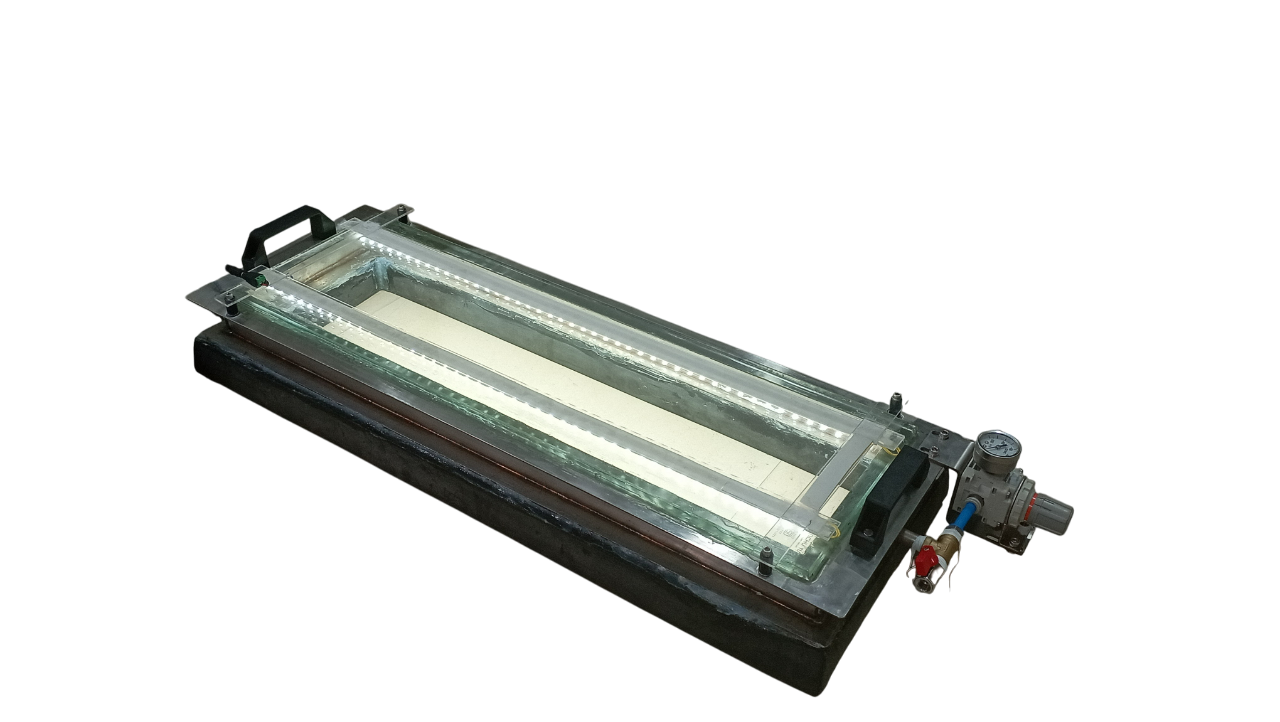

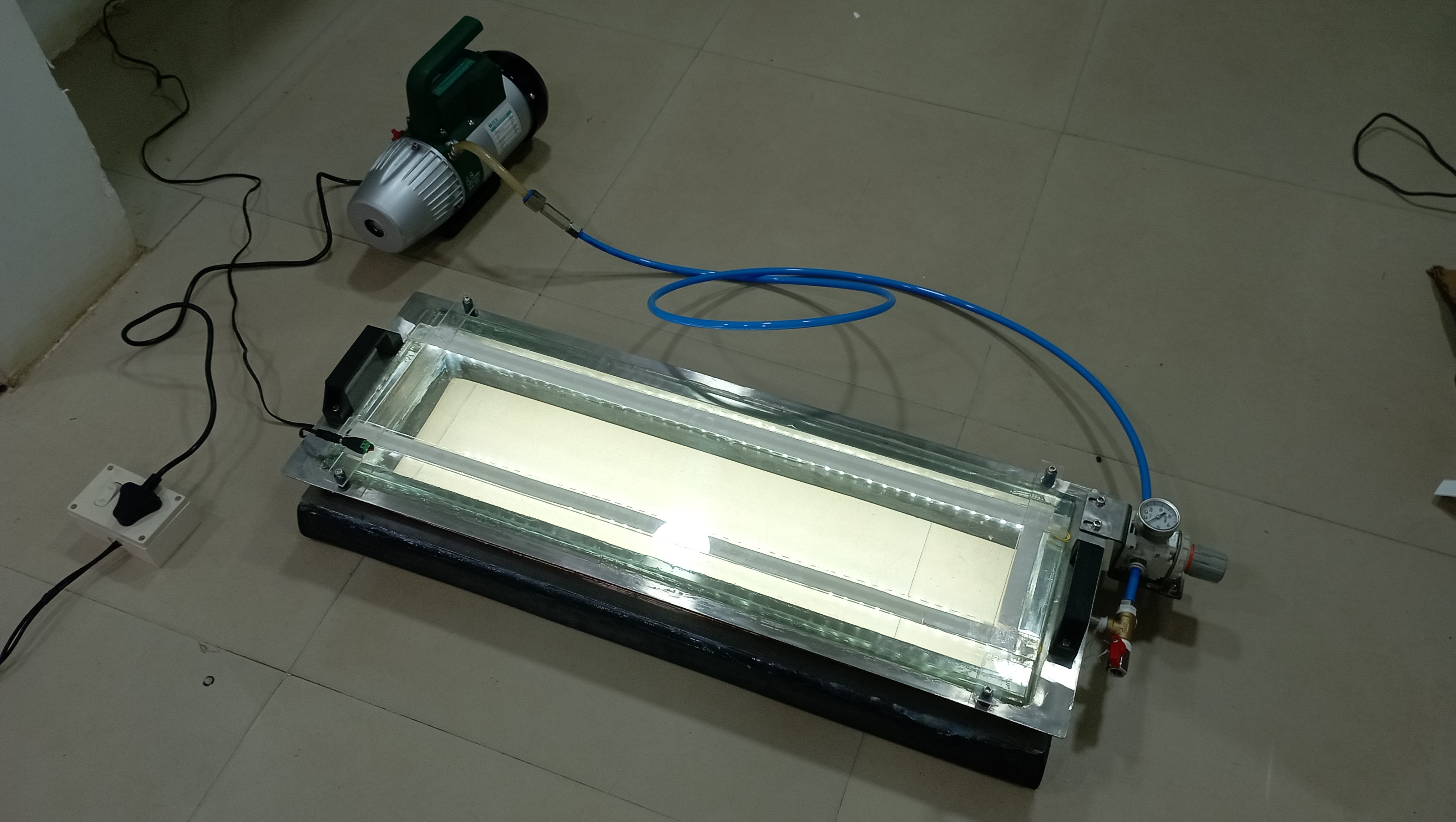

The Weld Vacuum Tester is an advanced testing device designed to detect leaks and ensure the integrity of welded structures. It operates by creating a controlled vacuum within a transparent chamber placed over the weld, allowing for precise leak detection using pressure variations. This tool is crucial for industries that require airtight and watertight welds, such as aerospace, automotive, and pipeline construction.

Key Features

  • High-Precision Leak Detection – Accurately identifies leaks in welded joints using a controlled vacuum system.
  • Transparent Acrylic Chamber – Provides clear visibility for inspection during the testing process.
  • Adjustable Vacuum Pressure – Equipped with a regulator and gauge to maintain precise vacuum levels.
  • Durable and Corrosion-Resistant Build – Made from high-quality materials to withstand harsh industrial environments.
  • Portable and Easy to Use – Compact design with ergonomic handles for easy handling and transportation.
  • Integrated LED Lighting – Enhances visibility inside the chamber for detailed inspection of welds.
Add an overline

Technical specification

  • Vacuum Pressure Range: Adjustable up to -0.85 bar (-85 kPa)
  • Chamber Material: Transparent acrylic with reinforced sealing
  • Seal Type: High-grade rubber gasket for airtight testing
  • Vacuum Generation: Pneumatic system with precision regulator
  • Pressure Gauge: Analog/digital display for accurate vacuum measurement
  • Illumination: Integrated LED strip for enhanced visibility
  • Base Material: Corrosion-resistant metal with anti-slip coating
  • Portability: Ergonomic handles for easy movement and setup

Application

“Efficient Power Control for Reliable Industrial Automation!”

The Weld Vacuum Tester is widely used to detect leaks in welded joints by creating a vacuum over the test area and monitoring for pressure drops or the presence of bubbles in a liquid test medium. This ensures the welds are airtight and free from defects. Industries such as shipbuilding, pipeline manufacturing, and structural steelwork rely on this method to prevent failures and ensure compliance with safety standards.

Pressure vessels, such as boilers and storage tanks, require strict testing to confirm they can withstand high internal pressures. The Weld Vacuum Tester helps identify weak points in the welds that could lead to catastrophic failures. By applying a controlled vacuum, manufacturers and maintenance teams can quickly verify weld integrity before commissioning these vessels for industrial use.

Welded storage tanks, especially those used for storing hazardous liquids such as chemicals, oil, and gas, need thorough leak testing to prevent environmental contamination. The vacuum box testing method helps identify even the smallest weld defects that could lead to leaks. Pipelines transporting fluids and gases also benefit from this testing, as undetected leaks can cause inefficiencies, economic losses, and potential safety hazards.

The automotive and aerospace industries require precise and robust welding for fuel tanks, hydraulic systems, and structural components. The Weld Vacuum Tester ensures that these components are properly sealed, preventing fuel or fluid leaks that could lead to mechanical failures. Aircraft fuselages, vehicle exhaust systems, and fuel storage components are frequently tested using this method to meet stringent regulatory standards.
